Grouped equipment

　　Introduction

　　(1) Function: Leaching system is an oil extraction through soaking or spraying pre-pressed cake by a certain organic solvent. The principle of this part is the different solubility of solvent.

　　(2) Use range: Solvent extraction fits for pre-press extraction of high-oil-content materials and direct once time extraction of low-oil-content materials.

　　2. Main parts

　　(1).Solvent pumps:continuously spray solvent to the rotary-type extractor

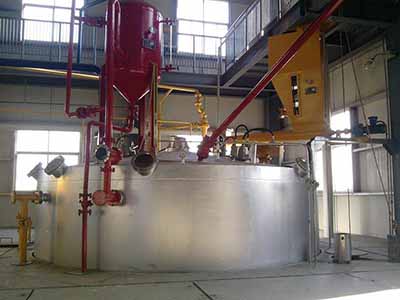

　　(2).Roary extractor:Spray and soak the pre-pressed cake with solvent so that oil fats can be dissolved in solve(form miscella). After processing, you can get wet meal and micella (mixed oil).

　　(3).DTDC:Used to separate the solvent from the wet meal.

　　(4). Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , and then add 10% saline water to it. The phospholipid and impurities in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.

　　(5). Miscella tank 2nd: the purified miscella will be pumped into it.

　　(6). Miscella stripping:it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.

　　(7). Condensers:used to cooling the solvent gas separated from the wet meal and miscella for recycling.
