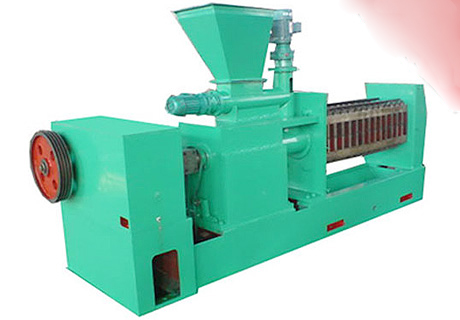

Cold-pressed process is suitable to produce low variability defatted cake and qualitative taste and fat ,become the pursuit of new oil press, The cold pressing machine, there are single and twin screw points, compared with the traditional model of a single-screw press dual structure, such as type 95 and press retrofit LYZX18,24 (5t / d, 12t / d) type. The twin-screw cold pressing machine is developed on the basis of a single screw press,which improve the mechanical properties and the oil yield, optimizing press technology to produce high-quality oil, cold pressed cake with high efficient.
Technical parameters:
Type | Double screw cold pressing machine | Single screw cold pressing machine | |||||||
Model | TSP Series | SSYZ12 | SSYZ30 | SSYZ50 | SSYZ100 | LYZ-X24 | LYZ-X28 | LYZ-X32 | |
Capacity/(t/d) | Cold-pressed | 50 | ≥6 | 18 | 50 | 60 | 12 | 40 | 60 |
Hot-pressed | 100 | ≥10 | 30 | >50 | 100 | 20 | 50 | 100 | |
Dry cake residual oil/% | Cold-pressed | 6-16 | 6-16 | ≤16 | 6-16 | ≤16 | 13-15 | 13-15 | 13-15 |
Hot-pressed | 4.5-7.5 | 4.5-7.5 | 4.5-7 | 4.5-7 | 4.5-7 | ||||
Squeeze cage length/mm | 1500 | 1060 | 1350 | 1350 | 1850 | 1036 | 1092 | 1092 | |
Ratio (L/D) | 6-8 | 9-11 | 9-11 | 11 | 9-11 | 6-8 | 6-8 | 6-8 | |
Speed/r/min | 10-15 | 10-18 | 10-18 | 10-18 | 10-18 | 20-26 | 20-26 | 20-26 | |
Theory compression ratio | 10-12/td> | 23 | 23 | 23 | 23 | 20 | 20 | 20 | |
Time/s | ≥120 | 120 | 120 | ≥120 | 120 | 120 | 120 | 120 | |
Power/kW | 80-90 | 16.51 | 33.6 | 51.69 | 82.93 | 22-37 | 75-100 | 110-130 | |
Height/kg | - | 3200 | 8300 | 9500 | 16500 | 5500 | 9160 | - |
