　　Towline Extractor

　　Towline Extractor Advantages:

　　1) The material is divided into several independent units on the material bed, which can effectively prevent miscella at all levels from fleeing hither and thither on the material layer and ensure the concentration gradient between several sprays.

　　2) Immersion area appears in each lattice, which can help achieve better immersion effect.

　　3) The chain box is supported by track and can prolong the service life of screen deck by not touching it.

　　4) The towline extractor is driven by world leading double-shaft hydraulic motor, with balance force, reliable operation and less maintenance cost.

　　5) Specialty suitable for the extraction of high oil and high power materials, and better immersion effect can be expected for ordinary oil plants.

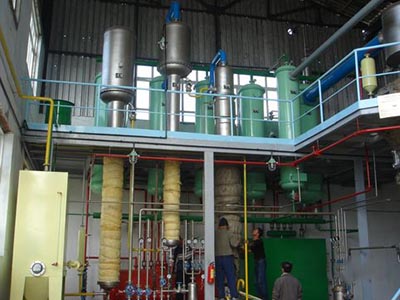

　　Main Equipments:

　　1. Solvent pumps: continuously spray solvent to the rotary-typr extractor.

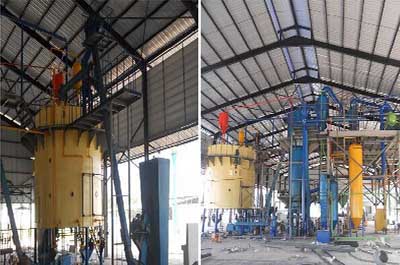

　　2. Roary extractor: spray and soak the soybean cake with solvent so that oil fats can be dissolved in solvent (form miscella). After processing, you can get wet meal and miscella (mixed oil).

　　3. DTDC: used to separate the solvent from the wet meal.

　　4. Miscella tank 1st: pump the miscella ( oil with solvent) into the miscella 1st, then add 10% saline water to it. The phospholipid and impurities in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.

　　5. Miscella tank 2nd: the purified miscella will be pumped into it.

　　6. Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.

　　7. Condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.
